Quality Control at Boeing

Prime-a-palooza

After what I thought was enough deburring (more on that in a bit), I started priming the shiny bits.

The rudder has significantly more components than the vertical stabilizer, which resulted in a number of rounds of priming.

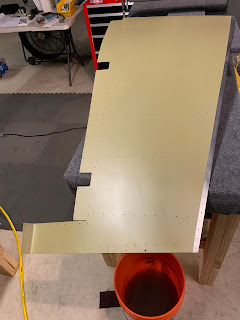

Finally, I was able to start dimpling the skins, which was oddly satisfying

Anticipating some flush riveting in the near future, I finally sanded the Avery swivel set so the AN426 heads don't sit proud to the skins.

First Big(ish?) Mistake

So Flight Chops has a new video out about his build!  He seems like a good guy, but honestly I feel like his videos make building seem more daunting than other channels set up specifically for building.  This is primarily because Steve seems so overwhelmed by everything, and he appears to be leaning pretty heavily on experts.  This is compared to Jason Ellis' channel, where he shares not only the build process, but the process of learning, making mistakes, and resolving issues.  Seeing Jason make mistakes, reason out his resolutions, and share encouragement with the audience makes me feel like I can build a plane too!  Full disclosure, I gave him my Vans' finders fee for his channel.

On to the mistake!  Steve's build seems to be taking an interesting tact, instead of deburring, drilling, deburring, priming, and riveting, they're deburring everything from the start.  Watching the process, I thought to myself, "Huh, am I deburring as thoroughly as they are?".  In short, no, no I am not.  I thought this was pretty ironic, as I had just had a conversation about the quality control issues at Boeing lately.  Glass houses and stones I suppose!


So, I'll reach out to the gurus at VAF for their opinion.  However, it appears I may need to drill out all the rivets I've set so far, finish deburring, some components, and touch up the primer with another coat.

To make myself feel like I got SOMETHING done, I deburred a HS doubler to compare against a raw HS doubler.

Finished doubler on the left, raw on the right
 Finally, I countersunk the trailing edge wedge (scrap pictured) and test-fit it in the skins.
